ISO Certified | Compliant With Local Radiation Safety Policy

Powerful and Safe-to-use X-Ray Inspection System

IL-3000

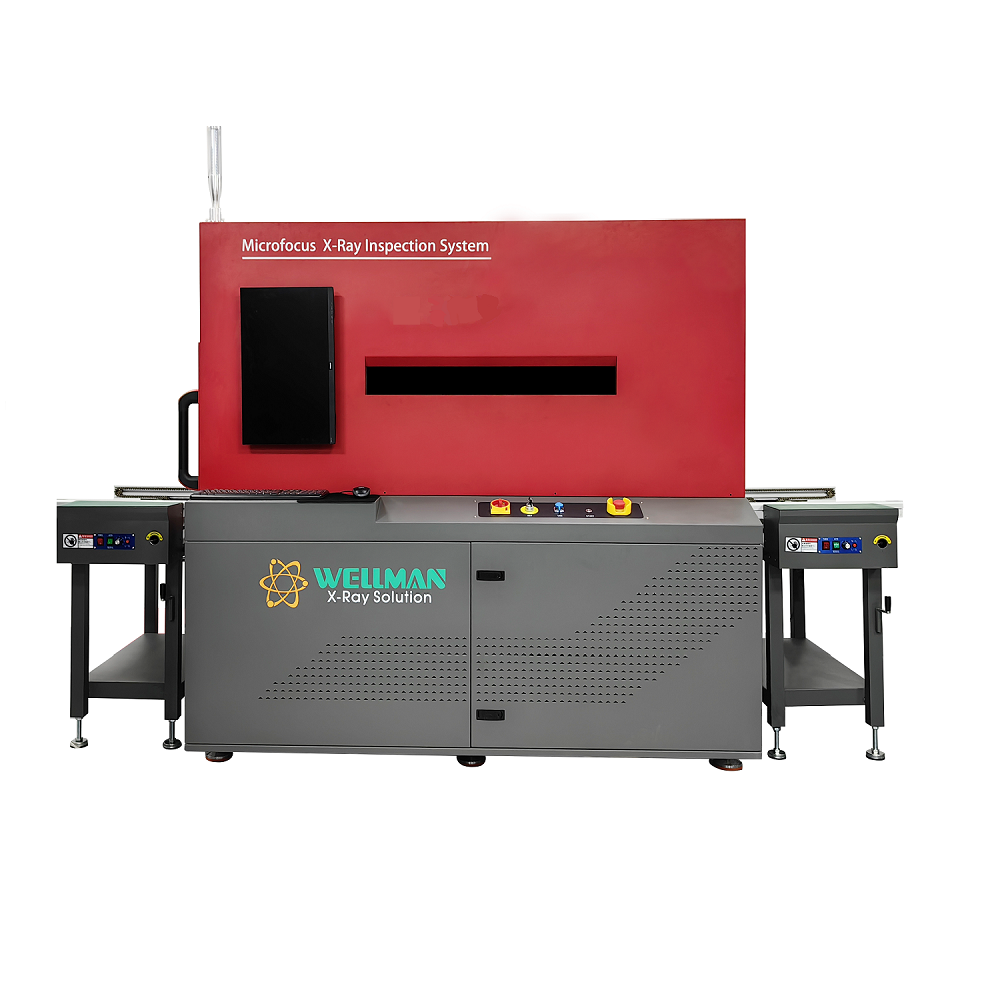

IL-3000 In-line X-Ray Inspection System

IL-3000 is one of the most advanced in-line x-ray inspection systems, it can be widely used in Non-destructive analysis of semiconductor, SMT, and electric component quality checking. By high resolution imaging, engineers can easily to find defects inside semiconductors , batteries , small metal casting, electronics cables and connectors, 3D Printing module, medical device and parts.

Features

  • 40kv – 90kv closed type micro-focus closed x-ray tube(Hamamatsu), focal spot size down to  5µ
  • New generation IRay 5” HD digital flat panel detector (FPD).
  • 1200mm*600mm inspection area with 10kg load capacity
  • Automatic navigation software provides easy positioning and identification of defects area.
  • Adjustable 6 axis linkage system, motion system equips with Panasonic servo motors, the panel detector and X-ray tube move synchronously.
  • Quick inspection parameter settings, inspection area adjust.
  • Inspection software provides access to create advanced inspection procedure for automated inspection in large quantities.
  • Multifunctional measuring tools including BGA void detection and automatic calculations, radius, area, perimeter, measuring, repeat programming
  • Industrial PC with Windows 7 PRO, 24” LCD flat panel display
  • Low maintanance requirements
  • High resolution imaging
  • User-friendly software interface

Specifiactions

1. X-Ray Inspection System IL-3000 Hardware Parameters


X-ray sourceBrandJapan Hamamatsu
TypeClosed, microfocus
Max tube voltage90kV
Max tube current200μA
Focal spot size5μm
FunctionAuto preheat
Flat panel detectorBrandIRay
Effective area130mm*130mm
Pixel size85μm
Resolution1536*1536
Frame rate20fps
TableTransfer methodbelt
MotorPanasonic servo motors
Detectable area1200mm*620mm
Max load10kg
EquipmentMagnificationGeometry 200X, System 1500X
Inspection speedMax 3.0s/point
Dimensions2000mm (L) * 1350mm (W) * 1860mm (H)
Weight2200kg
Power supplyAC110-220V 50/60HZ
Max power1700W
Industrial PCI7 CPU, 8G RAM, 240GB SSD + 1T HDD
Displayer24″ HDMI LCD
SafetyRadiation leakageNo leakage, international standard: ≤1μSv/h
Lead glass observation windowTransparent lead glass window shields radiation to observe the inner status.
Window and back door safety interlockOnce users open the window or back door, X-ray tube will power off immediately. When the window or back door is open, users can’t turn on the X-ray.
Electromagnetic safety switchLock once the X-ray is on, users can’t open the observation window.
Emergency stopNext to the operation position, press to power off.
Tube protectionUser can’t leave the software to if you don’t close the X-ray tube.

2.X-Ray Inspection System IL-3000 Software Parameters


Function moduleOperationKeyboard and mouse can finish all operations
X-ray tube controlUsing mouse to click the X button can turn on or off the X-ray. The real-time tube voltage and current value will display beside, users can click up and down button, or drag the slider, or type to adjust.
Status barIndicates the interlock status, pre-heat status, and X-ray status by flashing alternately red and green.
Image effect adjustmentThe brightness, contrast and gain of the image can be adjusted freely to achieve a satisfactory result.
Product listUsers can save the inspection parameters such as Z-axis position, brightness, contrast and gain, and can directly call the parameters when inspecting the same product, to improve the inspection efficiency.
Navigation windowAfter the camera takes a photo of the table, click anywhere in the photo, the table will move to the place you click and display on the screen.
Motion axis statusDisplay real-time coordinates.
Inspection resultThe measurement results (voids rate, distance, area, etc., set by users) display in order.
Speed controlThe movement speed of each axis can be adjusted to slow, normal and fast.
Voids rate measurementAutomatic calculationClick on two points to determine a rectangle. The software automatically finds and measures the edge of the solder ball in the rectangle, the pad and the internal voids, and can get the data of the voids rate, the area of the solder ball, the circumference, the biggest void’s rate, the length and the width, and indicates NG or OK by red and green.
Parameters adjustmentUsers can adjust the grayscale threshold, pixel, contrast, size filtering and other parameters to get accurate results of automatic calculation.
Add voids manuallyUsers can draw a polygon or a free figure and calculate it as a void into the void rate.
Save parametersUsers can save parameters such as grayscale threshold, pixel, contrast, size filtering and other parameters, and can directly call the parameters when detecting the same product, to improve the detection efficiency.
Other measurement functionDistanceClick the A and B points to set as the baseline, then click the C point to measure the vertical distance from the C point to the baseline.
Distance rateIt is mostly used to measure the soldering rate of the through-hole. Set one more point “D” than the distance. Divide the vertical distance from the D point to baseline by the vertical distance of the C point, to obtain the percentage ratio of the vertical distance of D to C.
AngleClick the A and B points to set as the baseline, then click the C point to measure the angle between the BA and BC rays.
RadiusIt is mostly used to measure round components such as solder balls. Click three points to determine a circle and measure the circumference, area and radius.
PerimeterIt is mostly used to measure square components, click two points to determine a square, measure the length, width and area.
Automatic inspectionManual settingUsers can set any positions on the table as inspection points, the software will automatically inspect and save the picture.
ArrayFor the regular inspection points, users only need to set two of the inspection points and the number of rows and columns, the software will automatically inspect each point and save pictures.
Automatic identificationFor inspection points with obvious features, the software automatically identifies the positions, takes measurements, and saves the image.

Working Principle

X-ray inspection system working principle

Application

BGA , CSP , Flip Chip, LED , Fuse, Diode, Sensors, PCB Voids Inspection

Semiconductor , Battery Industry , Small Metal Casting, Electronics Cables and Connectors, 3D Printing Module, Medical Device and Parts.

Radiation Safety Guarantee

All X-ray machines manufactured by Wellman meet the requirement of FDA-CDRH Regulation CFR 21 1020.40 Subchapter J for cabinet x-ray systems. The FDA – CDRH standard for cabinet x-ray systems states that radiation emission shall not more than. 5millirem a /hr.2″from any external surface. Our machines (X-Ray Radiation Level <1μSv/h ) are typically 5-10 times less emission than the standards, so there are no radiation concerns for operators.

Edit
Operation Safety
Radiation LeakageNo leakage, international standard: ≤1μSv/h
Lead Glass Observation WindowTransparent lead glass window to shields radiation, safe to observe the inner status.
Window and Back Door Safety InterlockOnce open the window or back door, the X-ray tube will power off immediately. When the window or back door is open, the operator cannot turn on the X-ray.
Electromagnetic Safety SwitchOnce the X-ray is on, the window will automatically lock, so the operator can’t open the window.
