Introduction
Overview of solder paste inspection
Solder paste inspection is a critical quality control process in the electronics manufacturing industry. It involves the examination and evaluation of solder paste deposits on printed circuit boards (PCBs) before the placement of components. This inspection ensures that the solder paste is applied correctly, with the right volume, position, and quality, to facilitate reliable and high-yield soldering processes.
Importance of solder paste inspection in electronics manufacturing
In today’s fast-paced and highly competitive electronics industry, product quality and reliability are paramount. Solder paste inspection plays a crucial role in detecting and preventing defects early in the manufacturing process, reducing rework costs, improving yields, and ensuring the overall quality and performance of the final products.
What is Solder Paste?
A. Definition of solder paste
Solder paste is a viscous, adhesive mixture used in surface mount technology (SMT) to create electrical and mechanical connections between components and PCBs. It is a critical material in the soldering process, facilitating the formation of strong and reliable solder joints.
B. Composition of solder paste
Solder paste typically consists of three main components: solder alloy particles (such as tin-lead or lead-free alloys), flux, and a thickening agent. The solder alloy particles provide the metallic material for creating solder joints, while the flux promotes wetting and helps remove oxides during the soldering process. The thickening agent gives the paste its viscous consistency, enabling accurate deposition onto the PCB.
C. Role of solder paste in the manufacturing process
Solder paste is applied to the PCB’s surface in a specific pattern, typically using a stencil printing process. This pattern corresponds to the locations where components will be placed. During the reflow soldering process, the solder paste melts and forms interconnections between the components and the PCB, creating reliable electrical and mechanical connections.
Why is Solder Paste Inspection Necessary?
A. Potential defects in solder paste deposition
Despite advances in manufacturing processes, several defects can occur during solder paste deposition. These defects may include incorrect volume or height of the solder paste deposits, misaligned or offset deposits, bridging between adjacent pads, insufficient or excessive paste coverage, and other irregularities.
B. Impact of defects on product quality and reliability
Defects in solder paste deposition can lead to various issues, such as poor solder joint formation, electrical shorts or opens, component shifting or tombstoning, and reduced reliability of the final product. These defects can ultimately result in product failures, costly rework or scrap, and customer dissatisfaction.
C. Benefits of solder paste inspection
Solder paste inspection helps identify and address defects early in the manufacturing process, before the components are placed and the soldering process is completed. By detecting and correcting these defects promptly, manufacturers can improve product quality, reduce rework and scrap costs, increase yields, and ensure consistent and reliable product performance.
Solder Paste Inspection Methods
A. Manual inspection
In some cases, solder paste inspection can be performed manually by trained operators using specialized microscopes or visual inspection systems. However, manual inspection is time-consuming, prone to human error, and may not be suitable for high-volume or complex PCB designs.
B. Automated optical inspection (AOI)
Automated optical inspection (AOI) systems use advanced imaging technologies and algorithms to inspect solder paste deposits on PCBs. AOI systems can quickly and accurately detect defects such as missing deposits, excessive or insufficient paste coverage, and bridging between pads.

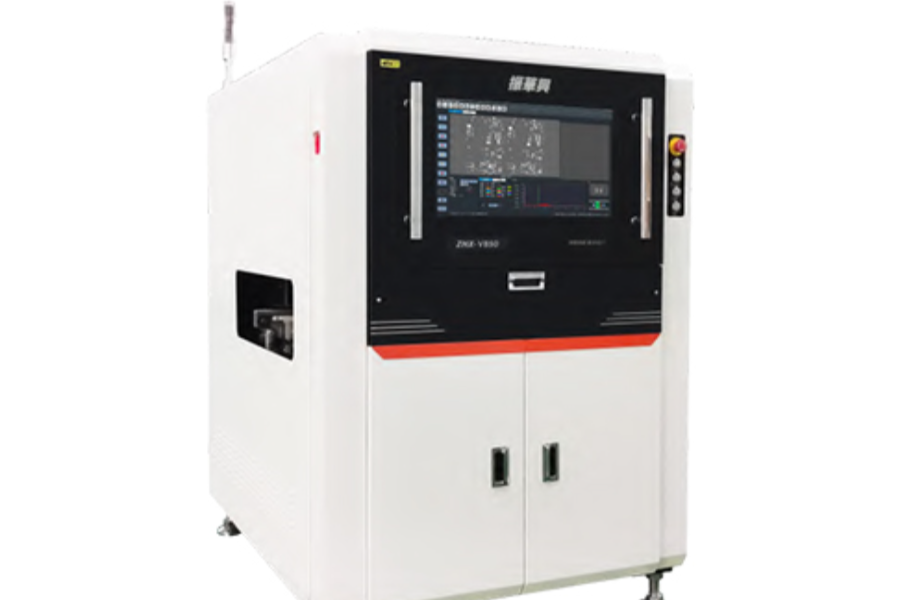

C. 3D solder paste inspection (SPI)
3D solder paste inspection (SPI) systems are more advanced than AOI systems and provide detailed three-dimensional measurements and analysis of solder paste deposits. SPI systems use various technologies, such as laser triangulation or fringe projection, to measure the volume, height, area, and position of solder paste deposits with high accuracy.
Key Parameters Evaluated in Solder Paste Inspection
A. Volume/height of solder paste deposits
One of the critical parameters evaluated during solder paste inspection is the volume or height of the solder paste deposits. Insufficient volume can lead to insufficient solder joints, while excessive volume can cause bridging or other defects.
B. Area/diameter of solder paste deposits
The area or diameter of the solder paste deposits is also closely monitored. Deposits that are too small or too large can affect the solder joint formation and reliable component placement.
C. Position/alignment of solder paste deposits
The position and alignment of solder paste deposits relative to the PCB pads are crucial. Misaligned deposits can result in poor solder joint formation, component shifting, or even component tombstoning (components standing upright instead of lying flat).
D. Bridging and other defects
Solder paste inspection also detects other defects, such as bridging (where solder paste creates unintended connections between adjacent pads), incomplete or missing deposits, and contamination or debris on the PCB surface.
Advantages of Automated Solder Paste Inspection
A. Improved accuracy and consistency
Automated solder paste inspection systems offer superior accuracy and consistency compared to manual inspection. Advanced imaging technologies and algorithms can reliably detect even minor defects that may be challenging for human operators to identify consistently.
B. Higher throughput and productivity
Automated inspection systems can process PCBs at a much higher speed than manual inspection, improving overall productivity and throughput in the manufacturing process. This is particularly important for high-volume production environments.
C. Data collection and traceability
Automated inspection systems generate detailed data and reports on solder paste quality, defect types, and trends. This data can be analyzed to identify root causes of defects, optimize processes, and enable traceability for quality control and continuous improvement initiatives.
Solder Paste Inspection Best Practices
A. Calibration and optimization
To ensure accurate and reliable solder paste inspection, it is essential to properly calibrate and optimize the inspection systems. This includes setting appropriate thresholds and parameters based on the specific solder paste materials, PCB designs, and manufacturing processes.
B. Defect classification and analysis
Effective defect classification and analysis are crucial for identifying root causes and implementing corrective actions. Inspection systems should provide detailed defect data, including defect types, locations, and severity, to facilitate root cause analysis and process improvements.
C. Integration with other quality control processes
Solder paste inspection should be integrated with other quality control processes, such as bare board testing, component placement inspection, and in-circuit testing, to ensure comprehensive quality control throughout the manufacturing process.
Conclusion
A. Summary of key points
Solder paste inspection is a critical quality control process in electronics manufacturing, ensuring the correct application of solder paste and facilitating reliable solder joint formation. By detecting and addressing defects early in the manufacturing process, solder paste inspection helps improve product quality, reduce rework and scrap costs, and increase yields. Automated inspection systems, such as AOI and SPI, offer superior accuracy, consistency, and productivity compared to manual inspection methods.
B. Importance of solder paste inspection in electronics manufacturing
As the electronics industry continues to evolve with increasingly complex and miniaturized designs, the importance of solder paste inspection will only grow. Implementing robust and effective solder paste inspection processes is essential for manufacturers to maintain a competitive edge, ensure product reliability, and meet the demanding quality standards of the industry.
FAQs
Q1. What is the difference between AOI and SPI for solder paste inspection?
A1. AOI (Automated Optical Inspection) systems use 2D imaging to detect defects like missing deposits, excessive paste coverage, and bridging. SPI (3D Solder Paste Inspection) systems use 3D imaging technologies to measure the volume, height, area, and position of solder paste deposits with high accuracy.
Q2. Can solder paste inspection be performed after component placement?
A2. No, solder paste inspection should be performed before component placement. Once components are placed, it becomes difficult to accurately inspect the solder paste deposits underneath. Solder paste inspection is a critical step in the SMT process to ensure reliable solder joint formation.
Q3. How does solder paste inspection improve product quality and reliability?
A3. By detecting and correcting defects in solder paste deposition early in the manufacturing process, solder paste inspection helps prevent issues like poor solder joint formation, component shifting, and electrical shorts or opens. This leads to improved product quality, reliability, and reduced rework and scrap costs.
Q4. What are some common defects detected during solder paste inspection?
A4. Common defects detected during solder paste inspection include insufficient or excessive paste volume, misaligned or offset deposits, bridging between adjacent pads, incomplete or missing deposits, and contamination or debris on the PCB surface.
Q5. How often should solder paste inspection systems be calibrated and optimized?
A5. The frequency of calibration and optimization depends on various factors, such as production volumes, PCB complexity, and solder paste materials used. Generally, it is recommended to calibrate and optimize solder paste inspection systems regularly, at least once per shift or production run, to ensure accurate and reliable inspection results.
