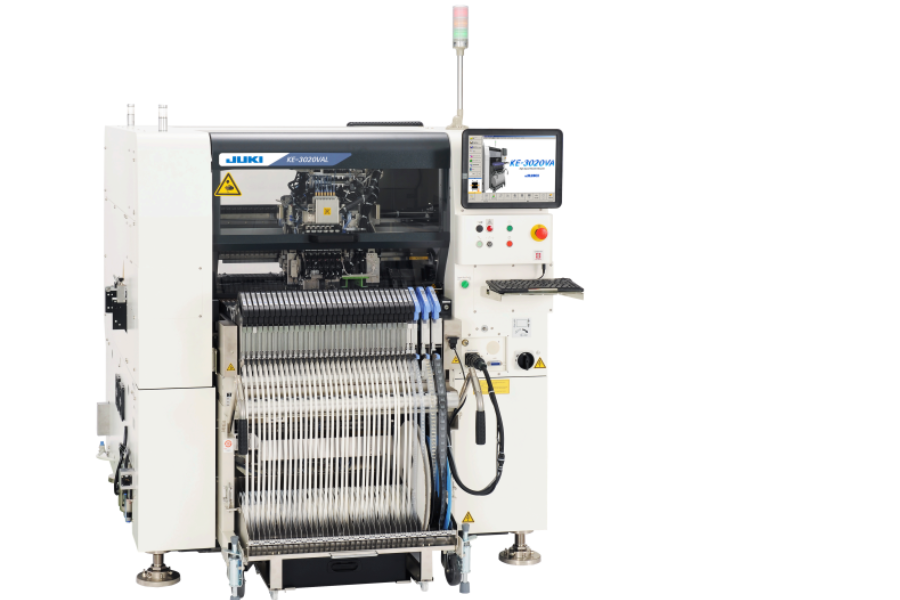

chip mounter

How Chip Mounter Works?

Introduction

In the ever-evolving world of electronics manufacturing, chip mounters play a crucial role in assembling the intricate components that power our modern devices. From smartphones to laptops, televisions to medical equipment, these highly specialized machines are the unsung heroes behind the seamless integration of tiny electronic components onto printed circuit boards (PCBs).

What is a Chip Mounter?

A chip mounter, also known as a pick-and-place machine or a surface mount technology (SMT) machine, is an automated system designed to precisely place electronic components onto PCBs. These components can range from tiny resistors and capacitors to larger integrated circuits (ICs) and microprocessors.

Key Components

To understand how a chip mounter works, it’s essential to explore its key components:

Feeder System: This system holds and organizes the various electronic components that need to be placed on the PCB. Components are typically stored in reels, trays, or specialized feeders.

Vision System: A high-precision camera and optics system is used to accurately identify the position and orientation of the components and the PCB. This ensures proper alignment during the placement process.

Placement Head: This is the heart of the chip mounter. The placement head picks up the components from the feeder system and accurately places them on the PCB using a vacuum nozzle or a specialized gripper.

Conveyor System: A conveyor belt or a movable table transports the PCB through the chip mounter, allowing for efficient and continuous operation.

Mounting Process

The chip mounting process follows a well-orchestrated sequence of steps:

  1. PCB Loading: The PCB is loaded onto the conveyor system or the movable table.
  2. Component Feeding: The feeder system automatically presents the required components to the placement head.
  3. Vision Alignment: The vision system captures images of the PCB and the components, ensuring accurate alignment and orientation.
  4. Placement: The placement head picks up a component and precisely places it on the designated location on the PCB.
  5. Adhesive Dispensing (Optional): For certain components, a small amount of adhesive may be dispensed to secure the component to the PCB.
  6. Repeat: Steps 2-5 are repeated until all components are mounted on the PCB.
  7. Unloading: The populated PCB is then unloaded for further processing, such as soldering or inspection.

Types of Chip Mounters

While the fundamental principles remain the same, chip mounters can be categorized based on their specific applications:

Surface Mount Technology (SMT) Mounters: These mounters are designed to place surface-mount components (SMCs) onto the surface of the PCB. SMCs have no leads and are directly mounted onto the board’s surface.

Through-Hole Mounters: As the name suggests, these mounters place components with leads that pass through holes in the PCB. The leads are then soldered on the opposite side of the board.

Dual-Delivery Mounters: These versatile machines can handle both surface-mount and through-hole components, offering flexibility in the manufacturing process.

Factors Affecting Mounting Accuracy

Several factors can impact the accuracy and precision of the chip mounting process:

Component Size and Shape: Smaller components require higher precision and specialized handling techniques, while irregularly shaped components may pose additional challenges.

Board Complexity: The density and layout of components on the PCB can affect the placement accuracy, especially in densely populated areas.

Environmental Conditions: Temperature, humidity, and vibration levels in the manufacturing environment can influence the performance of the chip mounter and the components themselves.

Advantages of Chip Mounters

The implementation of chip mounters in electronics manufacturing offers numerous advantages:

High Speed and Accuracy: Chip mounters can place thousands of components per hour with exceptional accuracy, far exceeding manual placement capabilities.

Reduced Defects: Automated placement minimizes human errors and ensures consistent quality, leading to fewer defects and rework.

Increased Productivity: By automating the component placement process, chip mounters significantly increase production throughput and efficiency.

Applications

Chip mounters are essential in a wide range of industries that rely on electronics manufacturing, including:

  • Consumer Electronics: Smartphones, tablets, laptops, televisions, and other consumer devices.
  • Automotive: In-vehicle electronics, navigation systems, and advanced driver assistance systems (ADAS).
  • Aerospace and Defense: Avionics, satellites, and military electronics.
  • Medical Devices: Diagnostic equipment, implantable devices, and monitoring systems.
  • Industrial Automation: Programmable logic controllers (PLCs), sensors, and control systems.

Conclusion

Chip mounters are the unsung heroes of the electronics manufacturing industry, enabling the precise and efficient assembly of intricate electronic components onto PCBs. With their advanced vision systems, placement heads, and specialized feeder mechanisms, these machines ensure high-speed, accurate, and consistent component placement. As technology continues to evolve, chip mounters will play an increasingly vital role in meeting the demands of miniaturization, complexity, and production efficiency in the ever-growing electronics industry.

FAQs

Q1: What is the typical placement accuracy of a chip mounter?
A1: The placement accuracy of a chip mounter can range from ±0.01 mm to ±0.05 mm, depending on the specific machine and the size of the components being placed.

Q2: How are chip mounters programmed?
A2: Chip mounters are typically programmed using specialized software that allows for the creation of component libraries, PCB layout data, and placement instructions. Programming can be done manually or through automated data transfer from design software.

Q3: Can chip mounters handle both leaded and leadless components?
A3: Yes, many modern chip mounters are capable of handling both leaded (through-hole) and leadless (surface-mount) components, thanks to their versatile placement heads and feeder systems.

Q4: What is the typical cycle time of a chip mounter?
A4: The cycle time, which is the time taken to place a single component, can vary depending on the machine and the complexity of the PCB. However, high-speed chip mounters can achieve cycle times as low as a few milliseconds per component.

Q5: How are chip mounters maintained?
A5: Regular maintenance is crucial for ensuring the optimal performance and accuracy of chip mounters. This includes cleaning the placement heads, calibrating the vision system, replacing worn-out parts, and performing software updates and calibrations as recommended by the manufacturer.
